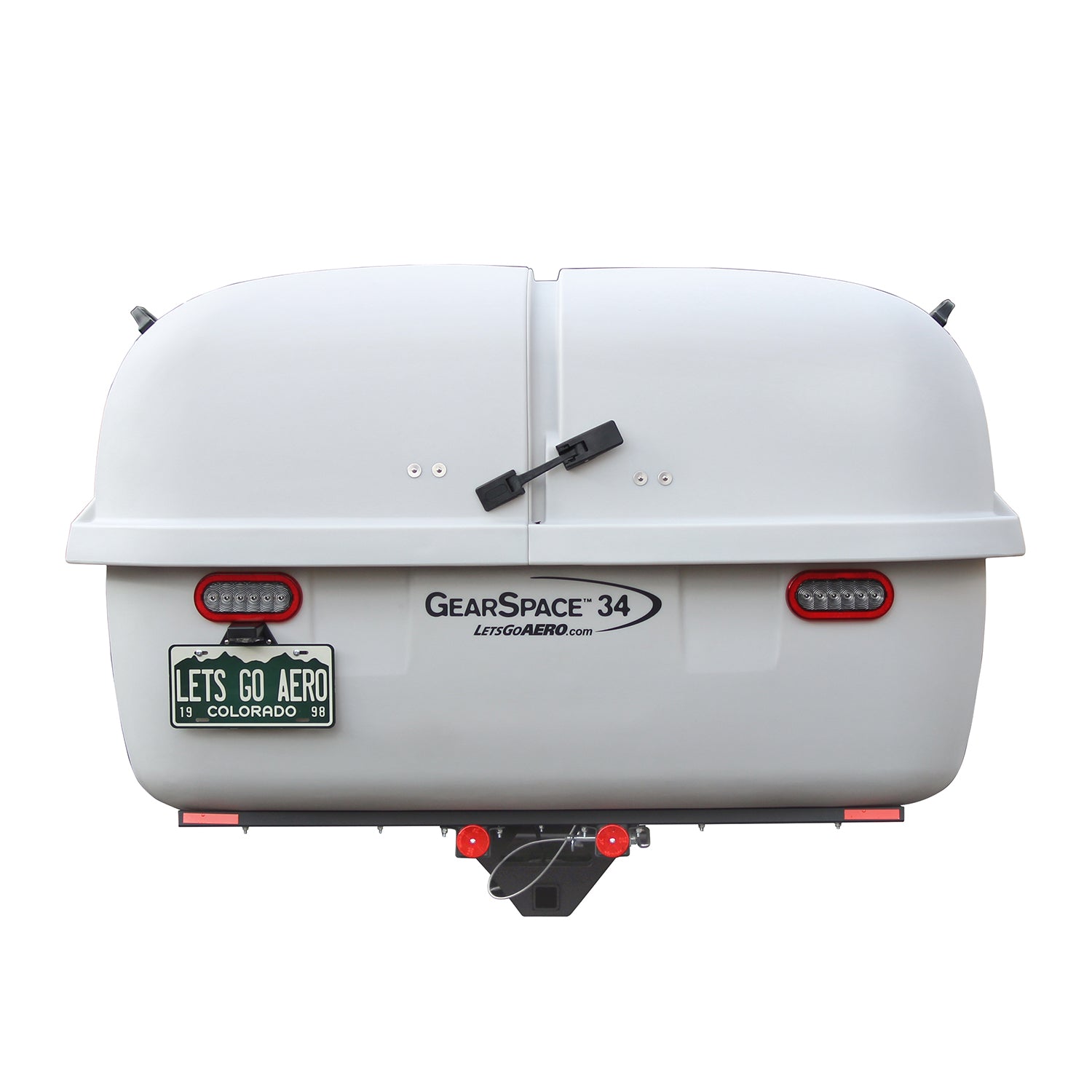

GearSpace Cargo Carrier -Light Gray

GearSpace Cargo Carrier -Light Gray

SKU:

HGK826

Availability:

Ships palleted via Freight Truck - Free Ship within lower 48 states, some restrictions may apply

$3,089.00

• Up to 32in of Slide-out for Rear Hatch & Sprinter Door Clearance

• 425 lbs Cargo Carrying Capacity

• Includes Capsule Lock & Silent Hitch Pin

This 34 cubic foot enclosed carrier holds all kinds of cargo ranging from luggage to up to two bicycles and is built upon our GMC award-winning TwinTube slide out hitch mount platform.Tough and buff, this world class automotive grade carrier is made for real life capacity needs among RVers, families, and group touring travelers.

Capsule is 68in. L x 33in. W x 40in. H outside; 63in. L x 28in. W x 40in. H inside
Super-sized 34 cubic feet of enclosed storage space
500 lbs gross weight rating; carries 375 lbs of cargo
Carrier empty weight is 125 lbs; two-part system separates weight during hitch mounting and removal
Slides out up to 34" for rear trunk and sprinter van door access on strong and stable dual tube platform
Secure and weather-proof; two black trivalent heavy-duty locks with set of keys for capsule lock down
Complete LED stop-turn taillights and illuminated license plate bracket, uses four-flat connector plug
Two Silent Hitch Pins included for quiet and stable, motionless hitch connection
For 2in. receivers with 350 tongue weight rating minimum, Class II or higher
ALL SALES FINAL, NO RETURNS

SPECIFICATIONS

DIMENSIONS

Capsule Outside

68"L x 33"W x 40"H

Capsule Inside

63"L x 28"W x 40"H (height is 38 1/2" at lid lip line where lids close together

Overall Height

51"H from hitch shank to top of capsule

Installed Clearance

Up to 11" (from hitch pin hole to capsule)

Slide-out Clearance

Up to 34" (for use when not in transit)

Capacity

34 cu. ft.

Weights

Gross Weight

500 lbs

Carrier Empty Weight

125 lbs (integral two part system)

Cargo Weight

375 lbs of Cargo

STRUCTURALS

Capsule Material

Tough, high density polyethylene (capsule) and steel (frame)

Frame

TwinTube® slide out platform, dual tube with cross wings for strength, balance, and easy telescoping

Latches

Automotive-grade rubber, corrosion-proof draw latches close lids together tightly

Security

Stainless steel capsule lock with set of keys

Lids

Clam shell lid opening, removable for larger cargo when needed

Lighting

Pre-wired, LED stop-turn tail lights with illuminated license plate bracket

Stability

Two Silent Hitch Pins(R) included

MANUFACTURING & WARRRANTY

Made in

USA

Warranty

Limited Lifetime

Tow Rating

Class II and higher with 2" size receiver hitch (350 tongue wight rating)

CARRIER COMPARISON

ENCLOSED CARRIER COMPARISON

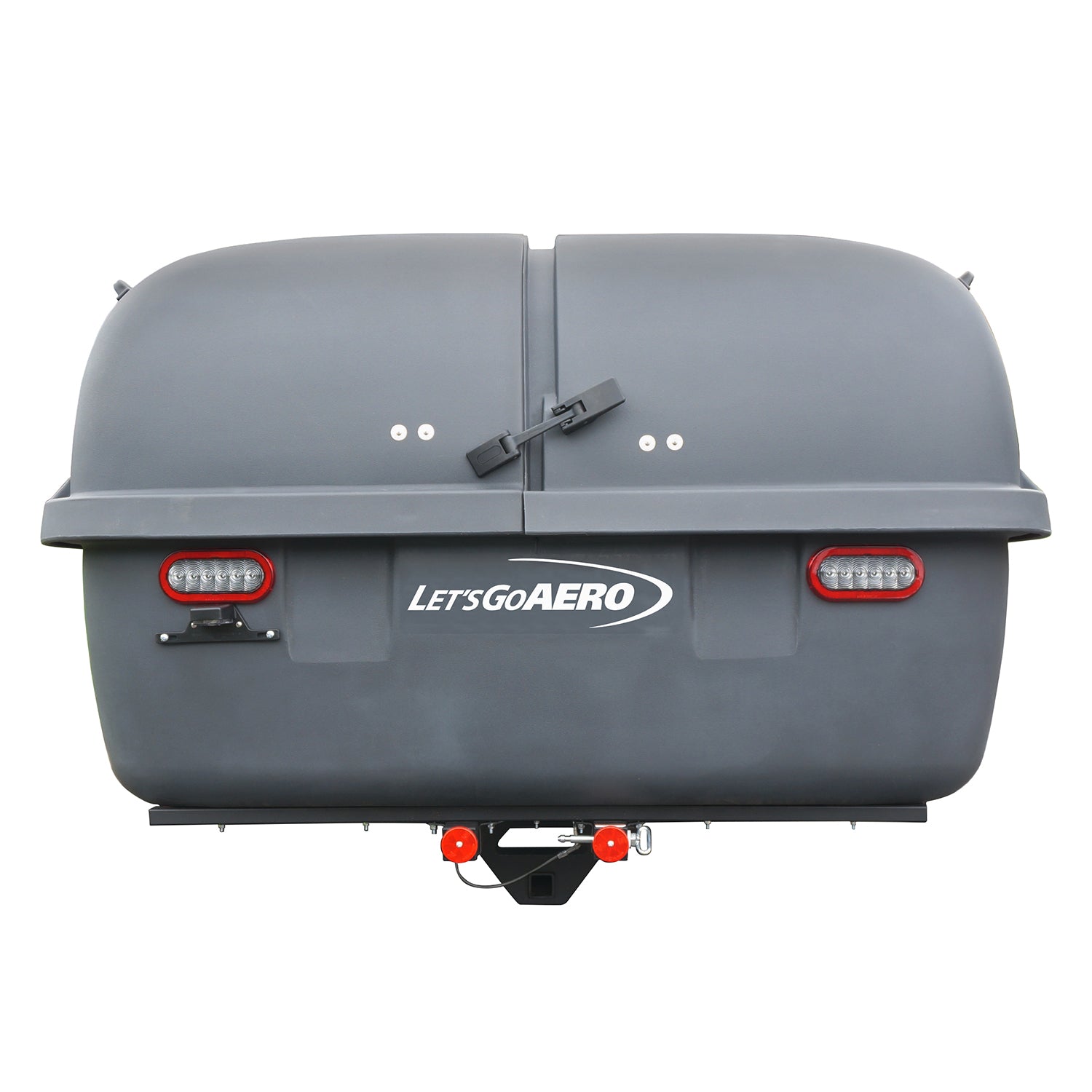

GearSpace	GearDeck	BlackBox	BlackBox PRO

Capacity: 34 cu ft	Capacity: 17 cu ft	Capacity: 51 cu ft	Capacity: 54 cu ft
Gross Weight Capacity: 500 lbs	Gross Weight Capacity: 500 lbs	Gross Weight Capacity: 500 lbs	Gross Weight Capacity: 500 lbs
Carrier Weight: 120 lbs	Carrier Weight: 80 lbs	Carrier Weight: 175 lbs	Carrier Weight: 180 lbs
Hitch Rating: Class II+, 2in Hitch Receiver	Hitch Rating: Class I+, 2in Hitch Receiver	Hitch Rating: Class III+, 2in Hitch Receiver	Hitch Rating: Class III+, 2in Hitch Receiver
Vehicle Compatibility: Motorized Vehicle & RV Trailer Approved	Vehicle Compatibility: Motorized Vehicle & RV Trailer Approved	Vehicle Compatibility: Motorized Vehicle & RV Trailer Approved	Vehicle Compatibility: Motorized Vehicle & RV Trailer Approved
Hitch Rise: 5 in	Hitch Rise: 5 in	Hitch Rise: 5 in	Hitch Rise: 5 in
Slide-out Clearance: 32 in	Slide-out Clearance: 34 in	Slide-out Clearance: 32 in	Slide-out Clearance: 32 in
Locks: Lockable (locks not included)	Locks: Locks Included	Locks: Locks Included	Locks: Locks Included
	GO TO PRODUCT PAGE	GO TO PRODUCT PAGE	GO TO PRODUCT PAGE

MANUALS FLYERS & BROCHURES

Download the Assembly & Operation Manual

Download the Brochure

SHIPPING

Ships unassembled, palleted via freight truck.

Shipping times are not guaranteed. If you would like expedited shipping please call our office at (719) 630-3800 for availability and a custom quote. See Shipping Policies for details about shipping and receiving.

ALL SALES FINAL, NO RETURNS
